Test tables

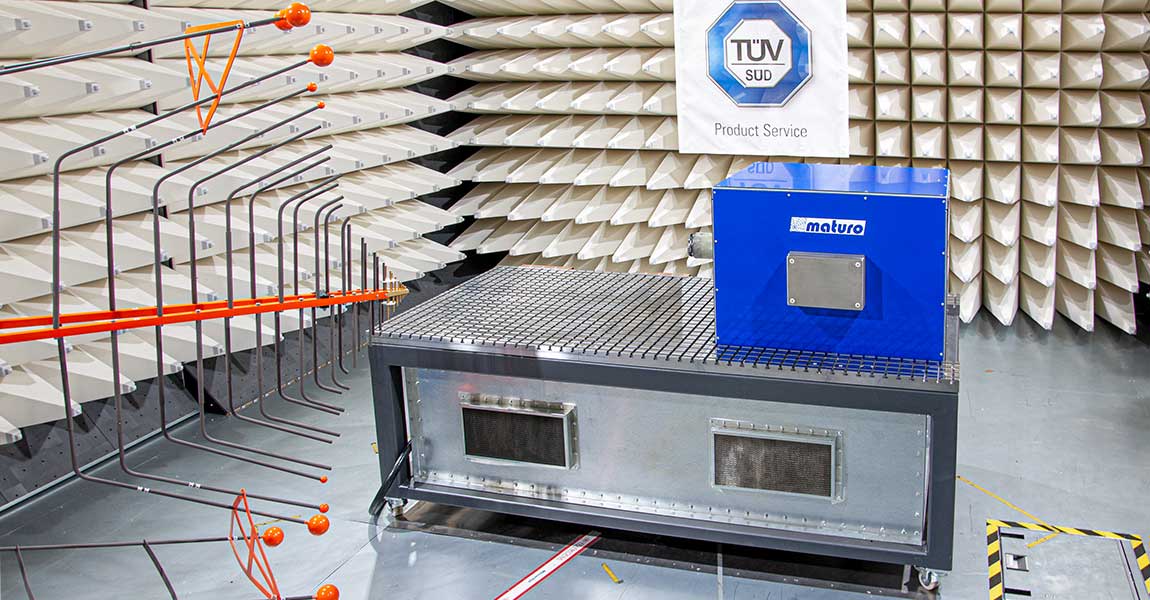

Bavarian Engine System Tester
Mobile test stand for installation in electromagnetic absorption chambers in combination with a CISPR test table for component testing according to DIN EN 55025:2018-03 (CISPR 25:2016 + COR1:2017).
- T-slot table surface for easy mounting of the test motor with a working surface of approx. 1.2 m x 1.2 m
- Different adaption sizes available on request
- No gear between loading and test motor
| Material | Metal |
| Torque | up to 677.4 Nm |
| Speed | up to 10.000 rpm |
BEST 50BEST 60

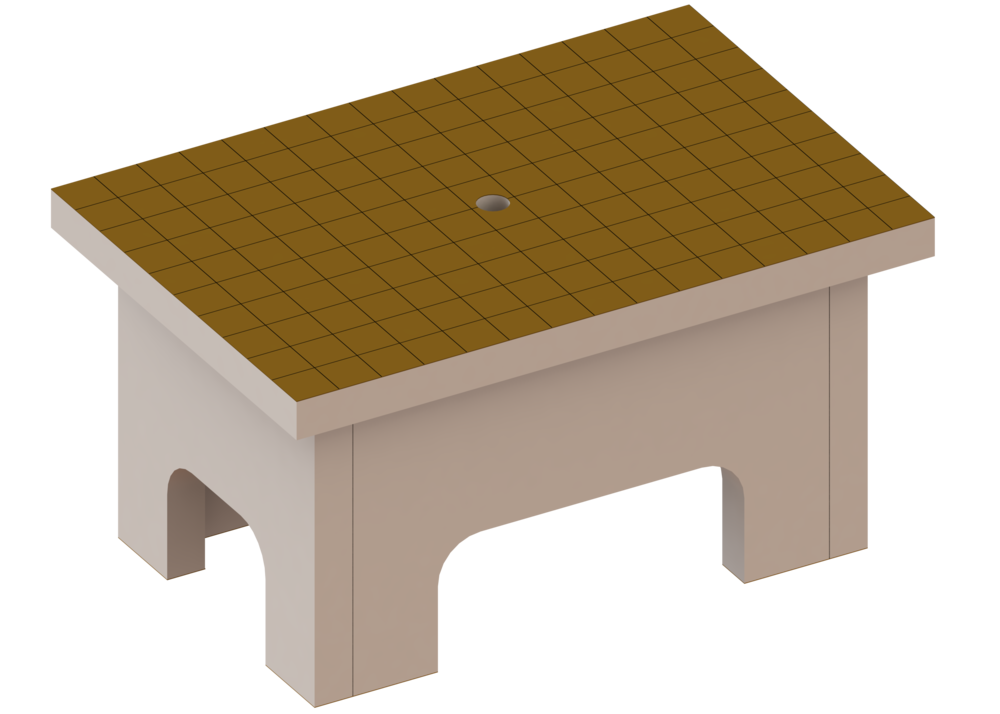

Plastic Test Table PTT made of Styrodur
Free-standing test table for installation on top of a turntable or chamber floor
Different sizes available
Rectangular or round versions
| Material table | Styrodur |
| Dielectric constant | 1.2 |
| Material table top | Pertinax |
| Load capability | up to 250 kg |
PTT1.5x1.0x0.8-SPTT0.8x0.8-S
Plastic Test Table PTT made of Rohacell
Free-standing test table for installation on top of a turntable or chamber floor
Different sizes available
Rectangular or round versions
| Material table | Rohacell dielectric constant of 1.05 |
| Dielectric constant | 1.05 |
| Material table top | Pertinax |
| Load capability | up to 250 kg |
PTT1.5x1.0x0.8-RPTT0.8x0.8-R

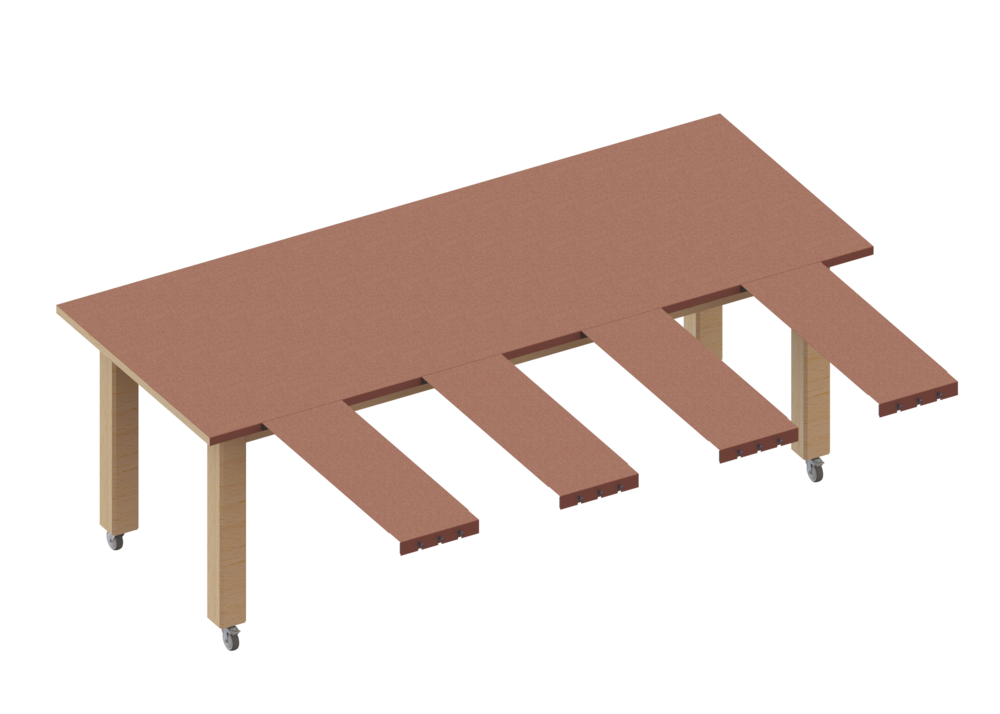

CISPR Test Table
Free-standing test table for installation on top of a turntable or chamber floor
Different sizes and table top materials available
Equipped with castors for effortless moving in the chamber
| Optional | with integrated turntable |
| Load capability | up to 750 kg |
MT2.5x1.0x0.9-CUMT2.5x1.0x0.4-CU_TT1.2WF-M
