Linear Positioners

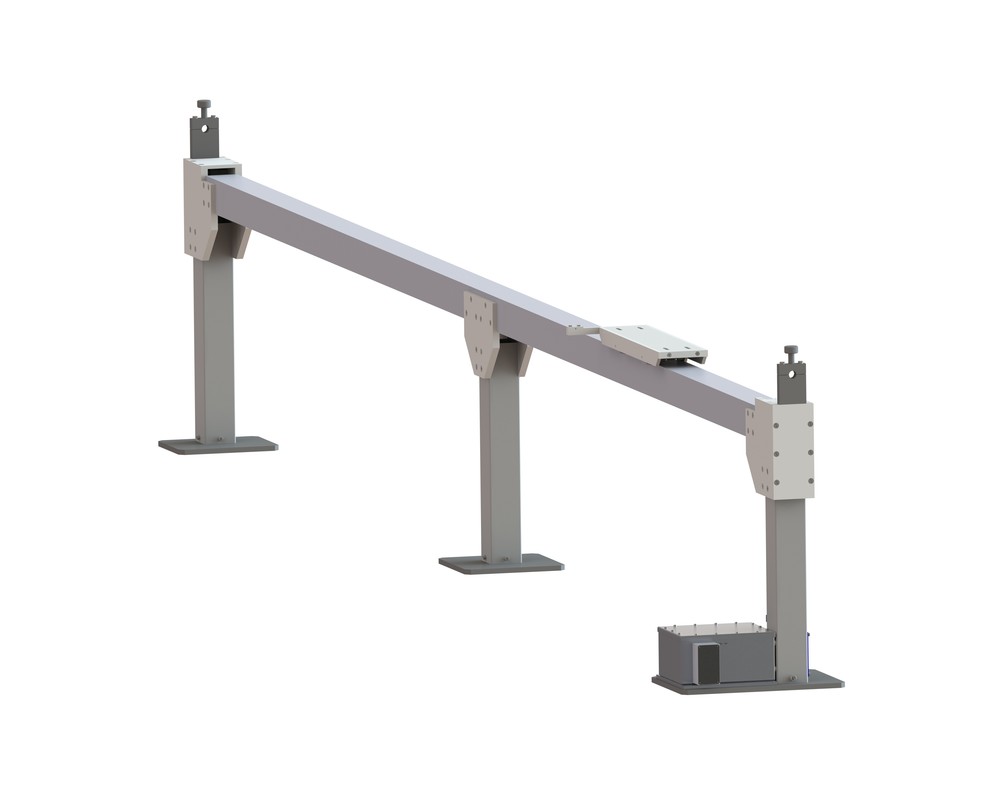

CGR 5.4

The Cable Guide Rails is used for the remotely-controlled positioning of an absorbing clamp along an electric cable. Automatic measurements of the RFI power according to CISPR, EN, ANSI, VCCI and VDE standards are possible.



Moving range5,4 m (without clamp)
Total measurement range6.0 m (with clamp)
Track height0.8 m

CGR5.4CGR6.0

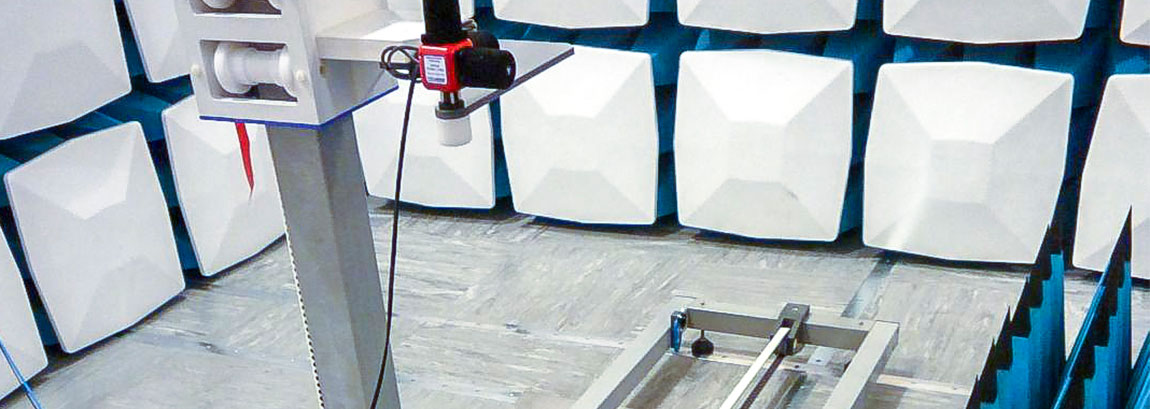

FPP 2.3/1.5

Biaxial Positioner for remote-controlled measurements at defined vertical areas. The system allows automatic measurements of the field homogeneity according to EN61000-4-3 and IEC61000-4-3.


Movement vertical0.8 - 2.3 m
Movement horizontal1.5 m
Max. Load capability3 kg

FPP2.3_1.5

FPP 2.3 M

Manual height adjustment of Sensors.
Other heights and load capabilities available on request.


Height adjustment of field probes Manual
Height adjustment from 0.2 to 2.3 m
Max. Load capability3 kg

FPP2.3M
