Antenna Masts & Stands

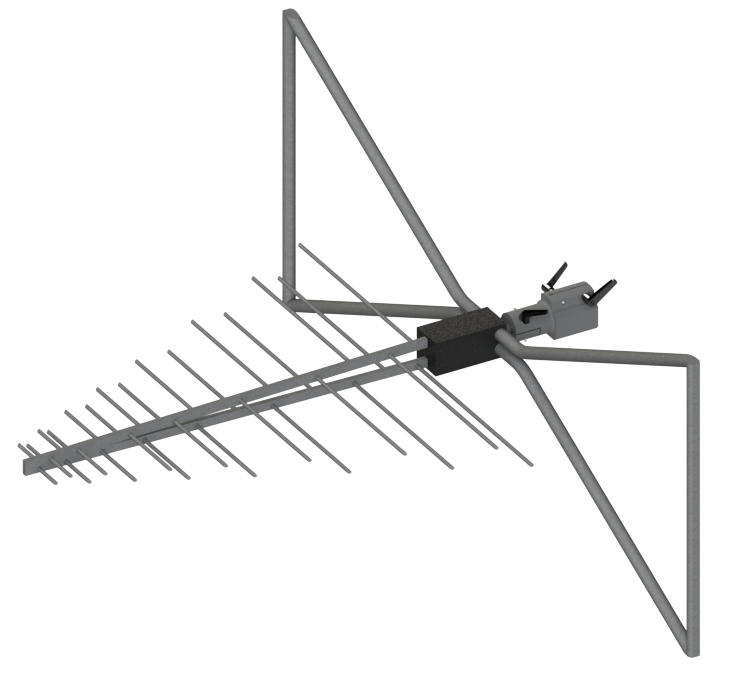

Antenna Adapter
Antenna Adapters for all commercially available antennas are available upon request. All antennas during polarisation rotate around their axis to eliminate any elevation errors.
| Mounting | Clamping System |
| Versions | Also for HD, Frankonia and Inn-co masts |

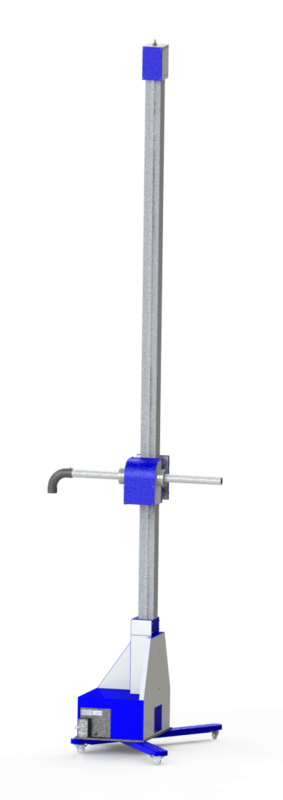

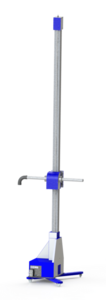

Compact Antenna Mast CAM
Other heights and load capabilities available on request
| Electrical height adjustment | from 1.0 up to 6.0 m |
| Polarisation | Pneumatic |
| Max. Load capability | 8 kg (12 kg) |
CAM4.0-PCAM4.0-P-12kgCAM6.0-P-12kg

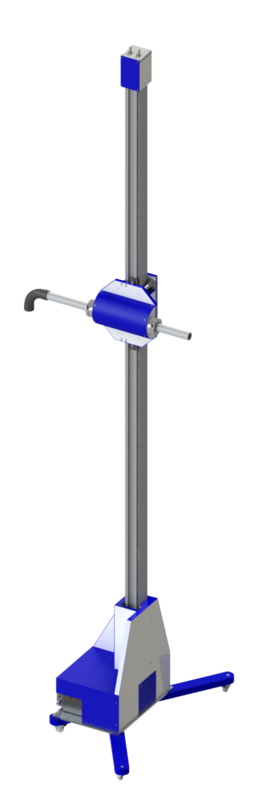

Antenna Mast AM
Other heights and load capabilities available on request
| Electrical height adjustment | from 1.0 to 4.0 m (6.0 m) |
| Polarisation | Electrical |
| Max. Load capability | 10 kg |
AM4.0AM4.0-OAM6.0

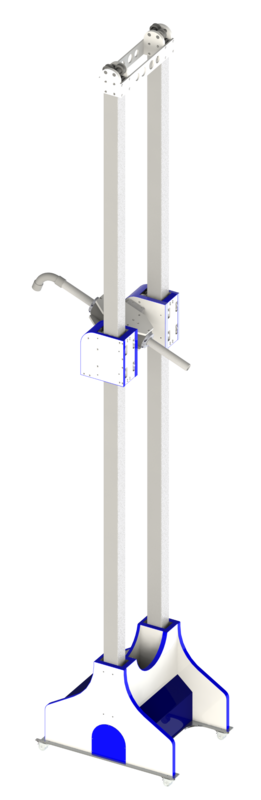

Tilt (Boresight) Antenna Mast TAM/BAM
Other heights and load capabilities available on request
| Electrical height adjustment | from 1.0 to 4.0 m (6.0 m) |
| Polarisation | Electrical or Pneumatical |
| Tilt angle | from -18° to 45° |
| Max. Load capability | 10 kg |
BAM4.0-PBAM4.5-PTAM4.0-ETAM4.0-P

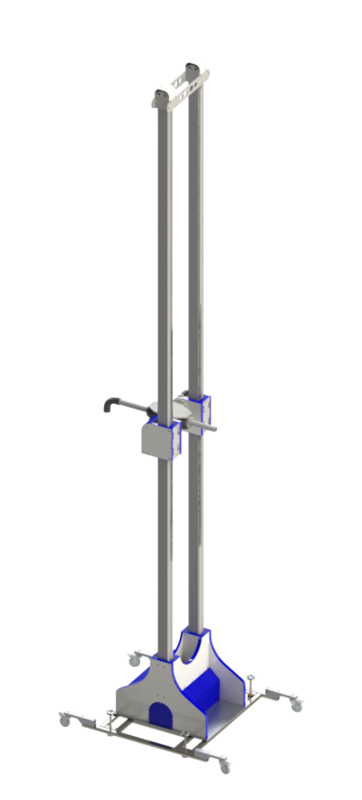

Dual Antenna Mast DAM
Other heights and load capabilities available on request
| Electrical height adjustment | from 1.0 to 4.0 m (6.0 m) |
| Polarisation | Electrical or Pneumatical |
| Max. Load capability | 20 kg |
DAM4.0-EDAM4.0-PDAM6.0-O

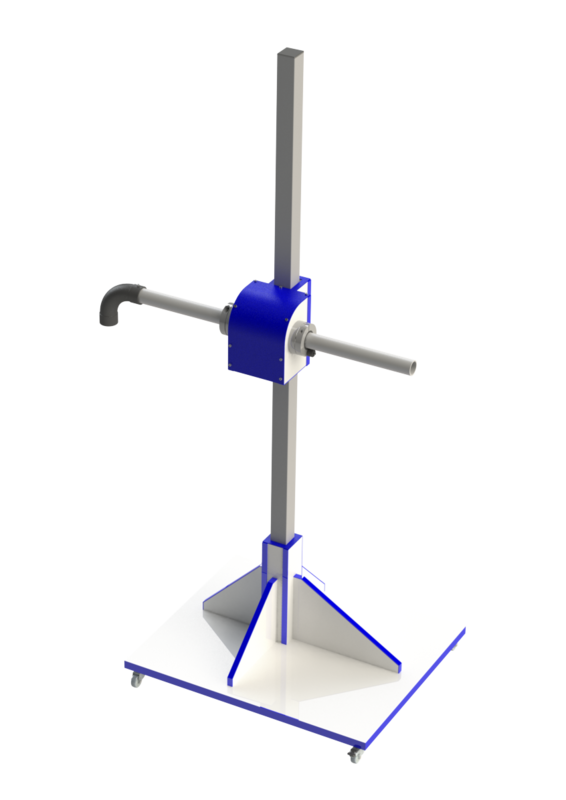

Manual Antenna Stand MAS
Other heights and load capabilities available on request
| Manual height adjustment | 0.7 to 2.0 m (4.0 m) |
| Polarisation | Manual |
| Max. Load capability | 6 kg (10 kg) |
MAS2.0MAS2.0-10kgMAS4.0-CMAS3162

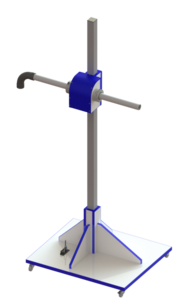

Pneumatic Antenna Stand PAS/ASP
Other heights and load capabilities available on request
| Manual height adjustment | 0.7 to 2.0 m |
| Polarisation | Pneumatic |
| Max. Load capability | 6 kg (10/15 kg) |
PAS2.0PAS2.0-10kgASP1.0/1.8-15kg

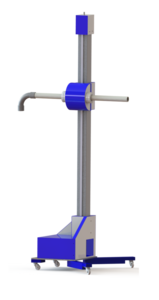

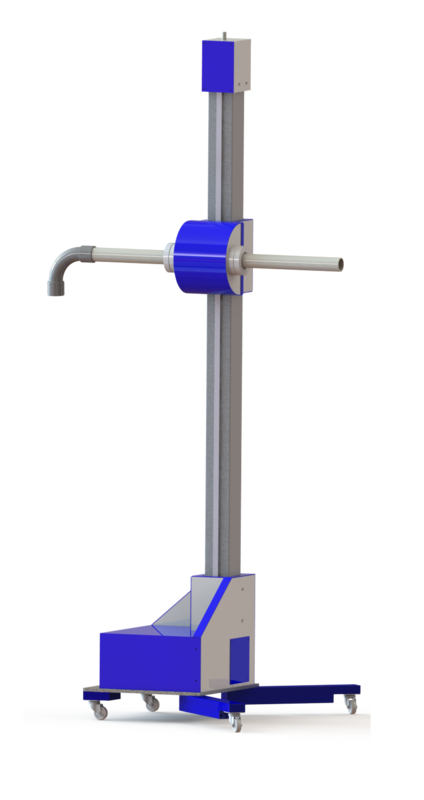

Electrical Antenna Stand EAS
Other heights and load capabilities available on request
| Antenna height | fixed or adjustable |
| Polarisation | Electrical |
| Max. Load capability | 6 kg (10/15 kg) |
EAS1.5EAS1.5-10kgEAS1.0/2.0EAS365-15kg

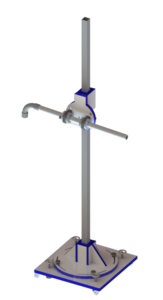

Manual Antenna Positioner
Other heights and load capabilities available on request
| Manual height adjustment | 0.3 - 2.5 m |
| Tilting and rotating angle | +/- 30° |
| Polarisation | Manual |
| Max. Load capability | 6 kg |
MAP2.5-T

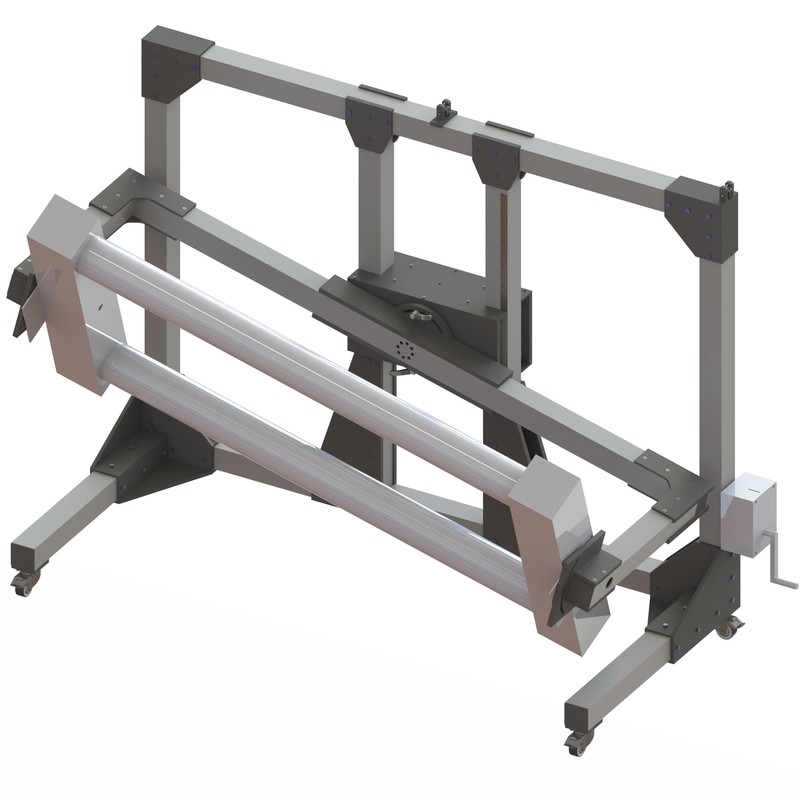

Positioner for E-Field Generators
For height adjustment, polarisation and tilting of heavy E-Field Generators.
| Height adjustment | 1.0 - 1.5 m |
| Tilting angle | +/- 30° |
| Polarisation | 0°/90° |
| Load capability | 100 kg |
MAP1.5-100kg-T
