Dynamometers for EMC / EMI measurements

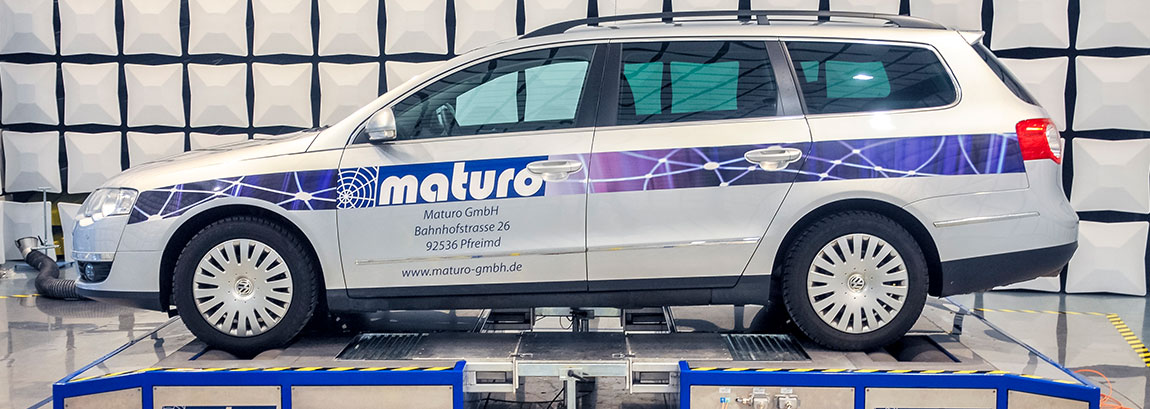

Dynamometer for vehicles - overview


Integrated dynamometer into turntable

For use in anechoic chambers for EMI and EMC measurements
Active axles or free-running rollers, for cars with rear /front - or all wheel drive
Different versions available



Speedup to 150 km/h
Axle loads1.5 to 15.0 tons
Acceleration0.5 to 2.0 g

DYN8WD_I-TT16.0-30tDYN4WD_I-TT7.5-5t

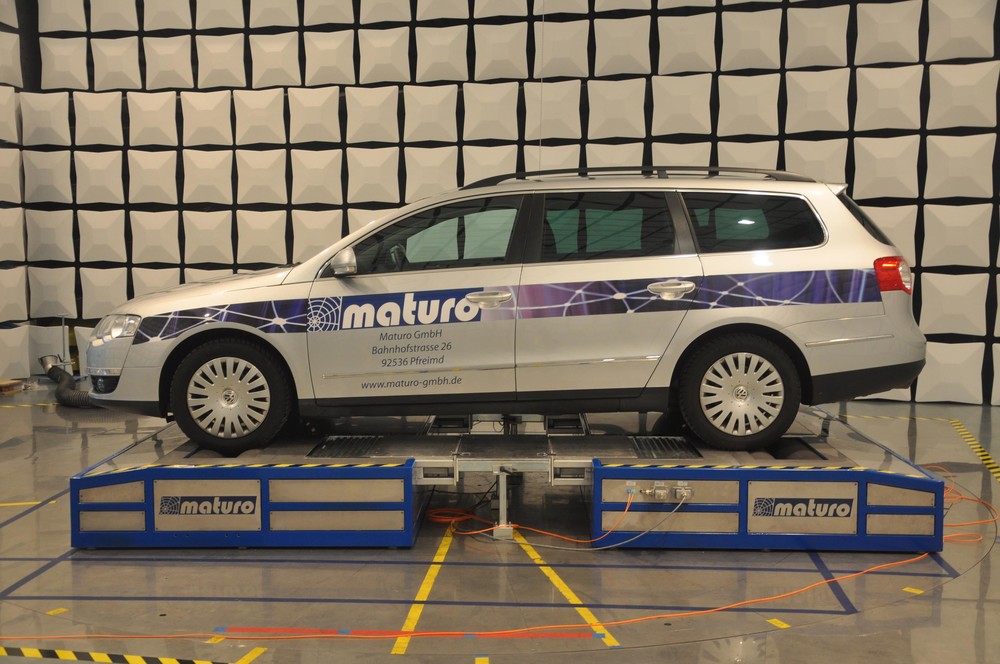

Free-standing dynamometer installed of top of turntable or chamber floor

For use in anechoic chambers for EMI and EMC measurements
Active axles or free-running rollers, for cars with rear /front - or four wheel drive
Independently controllable roller pairs
Different versions available



Speedup to 120 km/h
Axle loads1.0 to 5.0 tons
Acceleration0.5 to 2.0 g

F-DYN_4WD-3tFR-DYN-3t-F

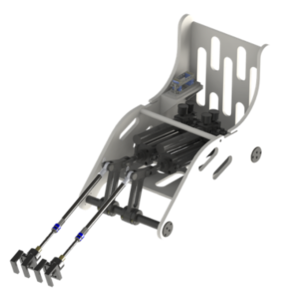

Robot System

The Robot R-AB allows the stepless adjustment of the accelerator and brake pedal inside EMC Chambers preferably in combination with chassis dynamometers, optionally, the clutch pedal can also be adjusted (R-ABC).
Different Versions available


Stroke distance accelerator 0 to 100 mm
Stroke distance brake 0 to 125 mm
Stroke distance clutch 0 to 150 mm

Robot R-AB_d

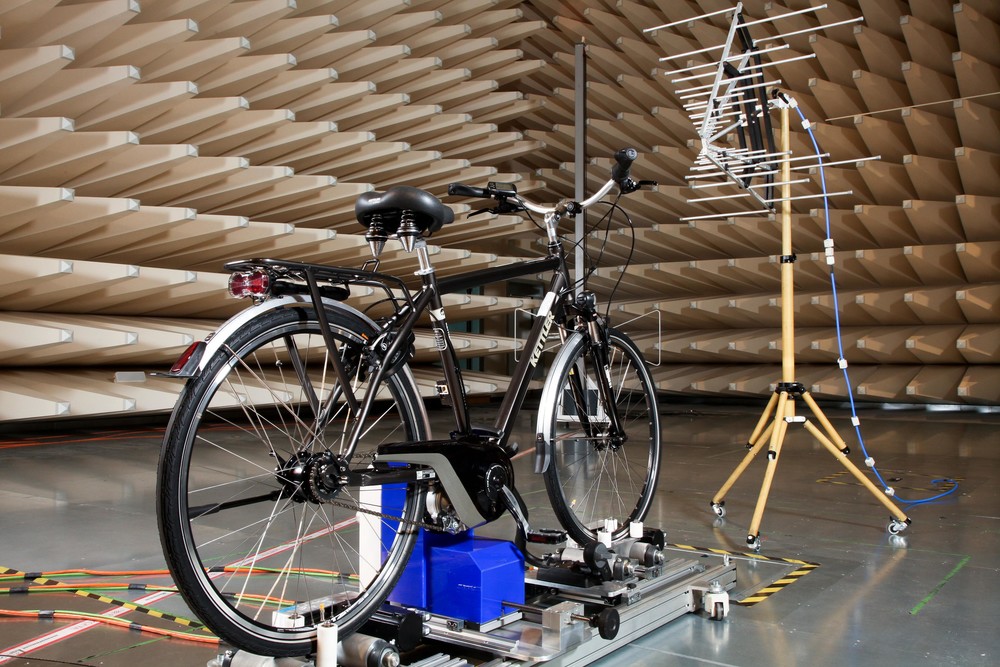

Dynamometer for E-Bikes and Pedelacs

For use in anechoic chambers for EMI and EMC measurements.
Testing of E-Bikes according to new EN 15194:2018 standard for EPACs (Electronically Power Assisted Cycles).


Speedup to 120 1/min
Three selectable drive units each 500 W

DYN_E-Bike
